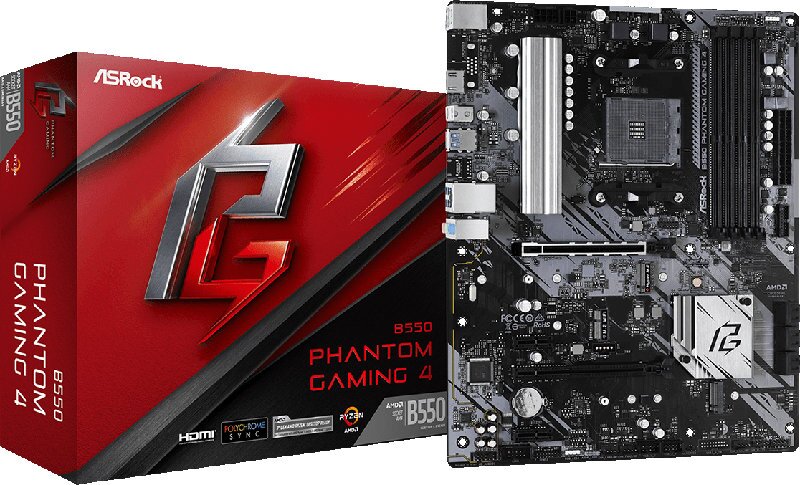

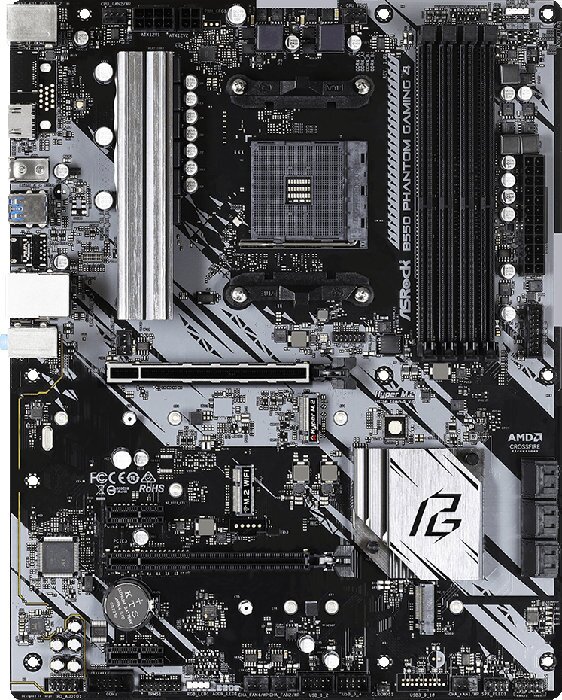

ΜΗΤΡΙΚΗ ASROCK B550 PHANTOM GAMING 4 RETAIL

ATX Form Factor (30.5 cm x 24.4 cm)

AM4

3rd Gen AMD Ryzen / future AMD Ryzen Processors

AMD B550

Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, Max. capacity of system memory: 128GB

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s), 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

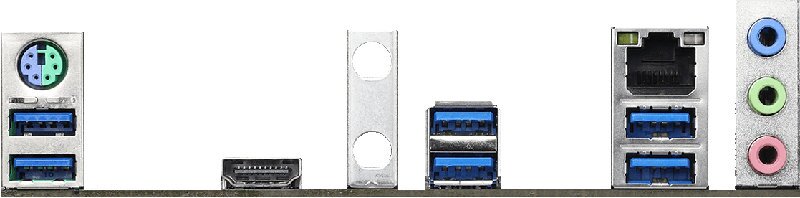

2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Integrated Graphics, 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H

Θύρες επέκτασης: AMD Ryzen series CPUs (Matisse): 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), AMD Ryzen series APUs: 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) / 2 x PCI Express 3.0 x1 Slots / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Microsoft Windows 10 64-bit

3 χρόνια
