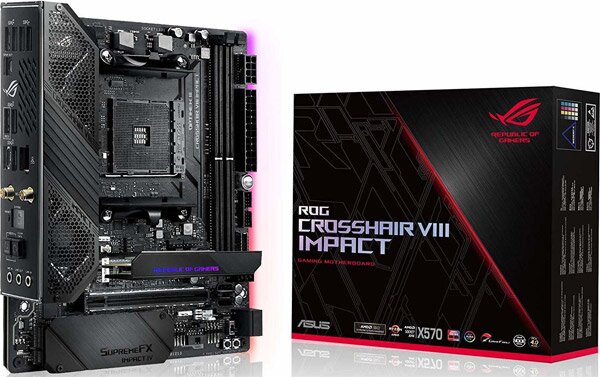

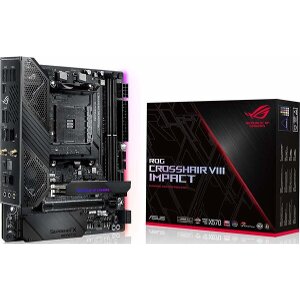

ΜΗΤΡΙΚΗ ASUS ROG CROSSHAIR VIII IMPACT

Mini-DTX Form Factor, 8 inch x 6.7 inch ( 20.3 cm x 17 cm )

AM4

AMD 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

AMD X570

3rd Gen AMD Ryzen Processors: 2 x DIMM, Max. 64GB, DDR4 (4800/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400 (OC)) /3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory, 2nd Gen AMD Ryzen Processors: 4 x DIMM, Max. 64GB, DDR4 3600/3466/3400/3200/3000 (OC) /2933/2800/2666/2400/2133 MHz Un-buffered Memory, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 2 x DIMM, Max. 64GB, DDR4 (3200/3000 (OC)) /2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture

3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support / 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) / AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support / 4 x SATA 6Gb/s port(s)

1 x Optical S/PDIF out, 1 x Clear CMOS button(s), 1 x USB BIOS FlashBack Button(s), 1 x ASUS Wi-Fi Module, 1 x Q-Code LED, 1 x Reset Button, 3 x LED-illuminated audio jacks, 2 x USB 3.2 Gen 1 (up to 5Gbps) ports , 6 x USB 3.2 Gen 2 (up to 10Gbps) ports (), Anti-surge LAN (RJ45) port

1 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support, 4 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) , 1 x Chassis Fan connector(s) , 1 x W_PUMP+ connector , 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Slow Mode switch(es), 1 x Reset button(s), 1 x Node Connector(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x System panel connector, 1 x T_Sensor Connector, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 1 x Start button, 2 x Radiator Fan Headers, 1 x USB 3.2 Gen 2 (up to 10Gbps) connector, 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

ROG SupremeFX 8-Channel High Definition Audio CODEC, Intel I211-AT, Realtek RTL8125-CG 2.5G LAN, ASUS LAN Guard, ROG GameFirst Technology, Intel Wi-Fi 6 AX200, Supports channel bandwidth: HT20/HT40/HT80/HT160, 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz, Up to 2.4Gbps transfer speed, Bluetooth 5.0

Θύρες επέκτασης: 3rd Gen AMD Ryzen Processors: 1 x PCIe 4.0 x16 (x16 mode), 2nd Gen AMD Ryzen Processors: 1 x PCIe 3.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x PCIe 3.0 x16 (x8 mode)

Windows 10 64-bit

3 χρόνια
