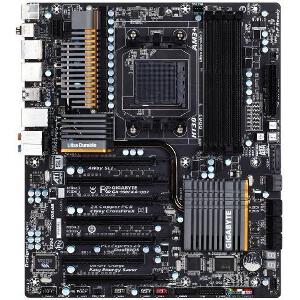

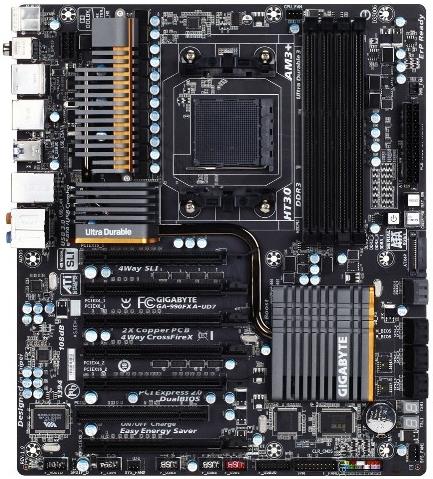

GIGABYTE 990FXA-UD7 RETAIL

ATX Form Factor; 30.5cm x 26.3cm.

AM3+.

Υποστήριξη για AM3 επεξεργαστές: AM3 Phenom II processor / AMD Athlon II processor / AM3+ FX processors.

North Bridge: AMD 990FX, South Bridge: AMD SB950.

: 4 x υποδοχές 1.5V DDR3 DIMM για υποστήριξη μέχρι και 32 GB μνήμης συστήματος. Υποστήριξη μνήμης με αρχιτεκτονική Dual Channel: DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules.

2 x PCI Express x16 slots, running at x16, 2 x PCI Express x16 slots, running at x8, 2 x PCI Express x16 slots, running at x4.

6 x SATA 6Gb/s θύρες, που υποστηρίζουν SATA RAID 0, RAID 1, RAID 5, RAID 10 και JBOD.

1 x RJ-45 port, 7 x USB 2.0/1.1 ports, 1 x eSATA 6Gb/s θύρες, 1 x PS/2 keyboard/mouse θύρα, 2 x USB 3.0/2.0, 1 x SPDIF out (οπτική), 1 x coaxial S/PDIF Out connector, 1 x IEEE 1394, 6 x υποδοχές ήχου (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out).

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x PCIe power connector, 8 x SATA 6Gb/s connectors, 1 x CPU fan header, 2 x system fan headers, 1 x power fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 3 x USB 2.0/1.1 headers, 1 x USB 3.0/2.0 header, 1 x IEEE 1394a header, 1 x Trusted Platform Module (TPM) header, 1 x clearing CMOS jumper, 1 x clearing CMOS button, 1 x power button, 1 x reset button.

Ενσωματωμένη Κάρτα Ήχου: Realtek ALC889 codec 2/4/5.1/7.1-κανάλια, High Definition Audio. Ενσωματωμένη Κάρτα Δικτύου: 1 x RTL8111E chip (10/100/1000 Mbit).

Retail.

3 χρόνια.
