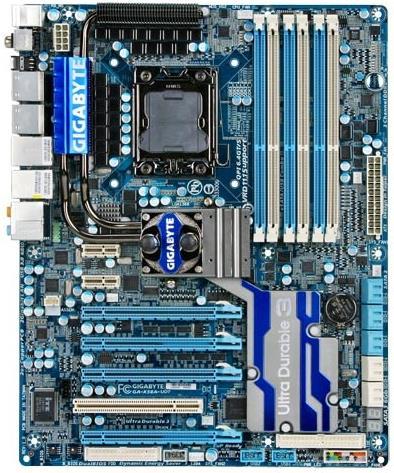

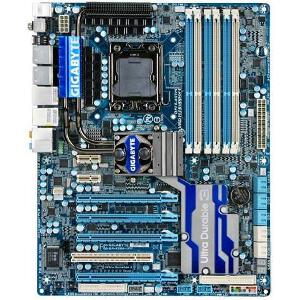

GIGABYTE GA-X58A-UD7

ATX με διαστάσεις 30.5 x 24.4cm.

Socket 1366.

Intel Core i7 series processor.

North Bridge: Intel X58 Express Chipset, South Bridge: Intel ICH10R.

2 x PCI Express x16 slots (x16), 2 x PCI Express x16 slot (x8) (Όταν στο PCIEX8_1 slot τοποθετηθεί μια κάρτα το PCIEX16_1 slot λειτουργεί στα x8 mode, όταν στο PCIEX8_2 slot τοποθετηθεί μια κάρτα το PC IEX16_2 slot λειτουργεί στα x8 mode). Υποστήριξη 2-Way/3-Way ATI CrossFireX/NVIDIA SLI.

GIGABYTE SATA2: 1 x Ultra DMA 33/66/100/133 (δυνατότητα σύνδεσης 2 συσκευών), 2 x SATA 3 Gb/s connectors (RAID 0, 1, JBOD).

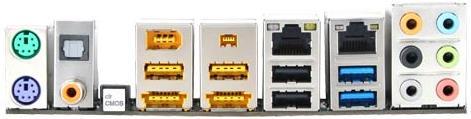

1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x coaxial S/PDIF Out connector, 1 x optical S/PDIF Out connector, 1 x clearing CMOS button, 2 x IEEE 1394a ports, 4 x USB 2.0/1.1 ports, 2 x USB 3.0 ports, 2 x eSATA/USB Combo connectors, 2 x RJ-45 port, 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone).

2 x PCI Express x1 slots, 1 x PCI slot, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x floppy disk drive connector, 1 x CPU fan header, 3 x system fan headers, 1 x power fan header, 1 x North Bridge fan header, 1 x front panel header, 1 x front panel audio header, 1 x CD In connector, 1 x S/PDIF In header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 1 x IEEE 1394a header, 1 x power button, 1 x reset button.

3 χρόνια
